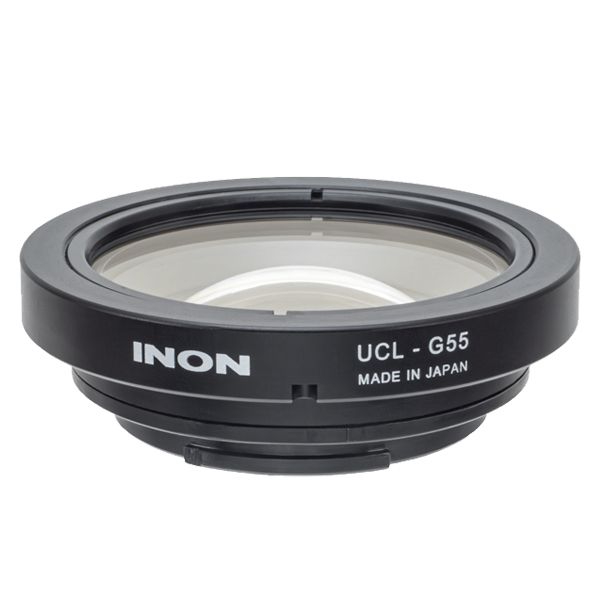

INON UCL-G55 SD onderwater Close-up Lens

INON INC. further expands its optical product lineup to explore GoPro camera’s macro capability with the UCL-G55 SD close up lens. The former provides double magnification of the UCL-G165II SD and the latter powers up to four times magnification. (The magnification factor is the scale ratio. The area ratio is the square of the scale ratio.) The lens is equipped with focusing guide that intuitively shows the minimum shooting distance and focus range for the UCL-G55 SD, respectively, drastically easing the effort of focusing and providing a powerful tool for capturing in-focus video. The width of the Focus Stick, two sticks attached on the lens barrel, indicates the horizontal shooting range (when F.O.V. is set to WIDE), and it can be instantly flipped up when not in use. You can change the orientation of the Focus Stick vertically as well. The Focus Stick can be removed from the lens when necessary like during transportation etc.

Blur-free Focus Aid Feature (PAT.P)

The Focus Stick width covers the field of view when the camera is set to WIDE. With the UCL-G100 SD, the tip of the Focus Stick indicates the minimum focusing distance, and the depth of field is 8.2 cm/3.2 inch from the tip. With the UCL-G55 SD, two protrusions on each stick indicate depth of field to locate a subject between the two protrusions for in focus filming. It is easy to take sharp and crispy high magnification close-up video by referring to the Focus Stick and checking the composition on the rear monitor. The Focus Stick rotates 360° and has clicks every 90°, so it can be instantly flipped up when not in use. Vertical installation is also possible. The Focus Stick body is attached to the lens with retaining screw ring and can be separated from the lens when not in use.

Specifications INON UCL-G55 SD:
